YYK Compatible Color LCD Display with Button Control

LCD Display is compatible with our YYK high speed controllers

However, do take note that these displays only display up to 99kmh.

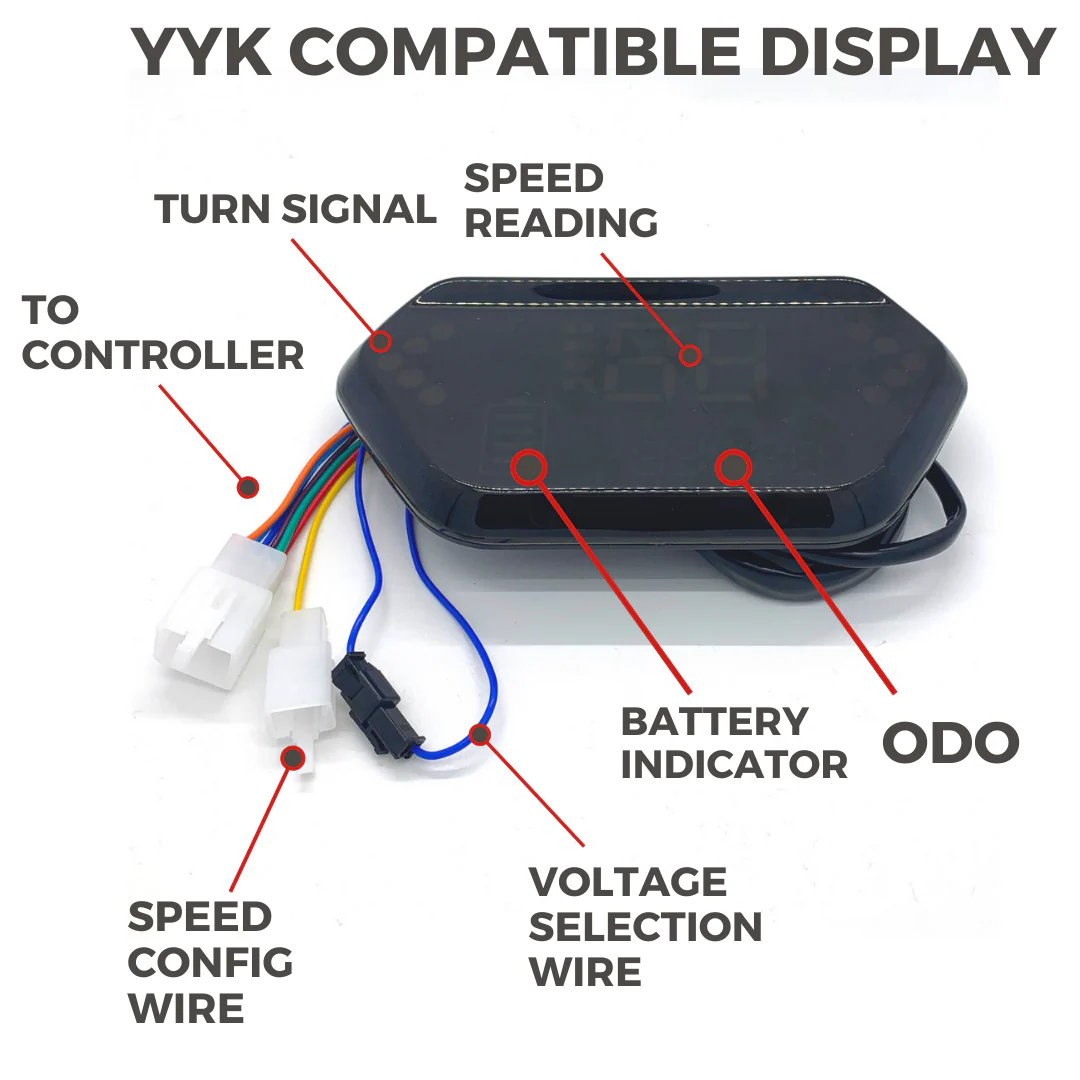

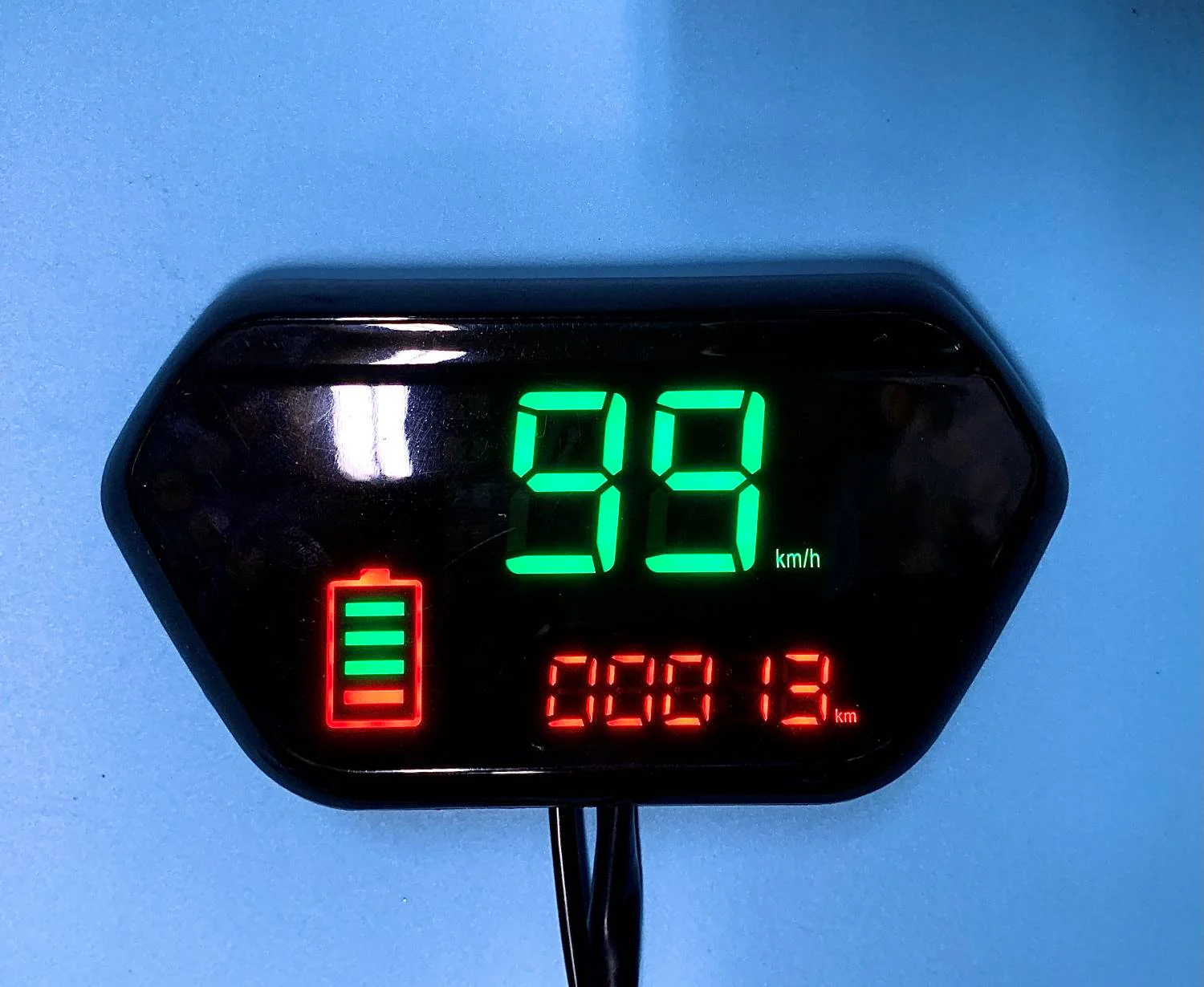

There are 2 models: one with only a display screen to display speed and battery indicator, and the other, a LCD display with button control is able to have on/off function, lighting control, battery indicator, and gear selection.

[product_description]

Do note that this will not fit ANY controller as it is specially customized for the YYK range of controllers.

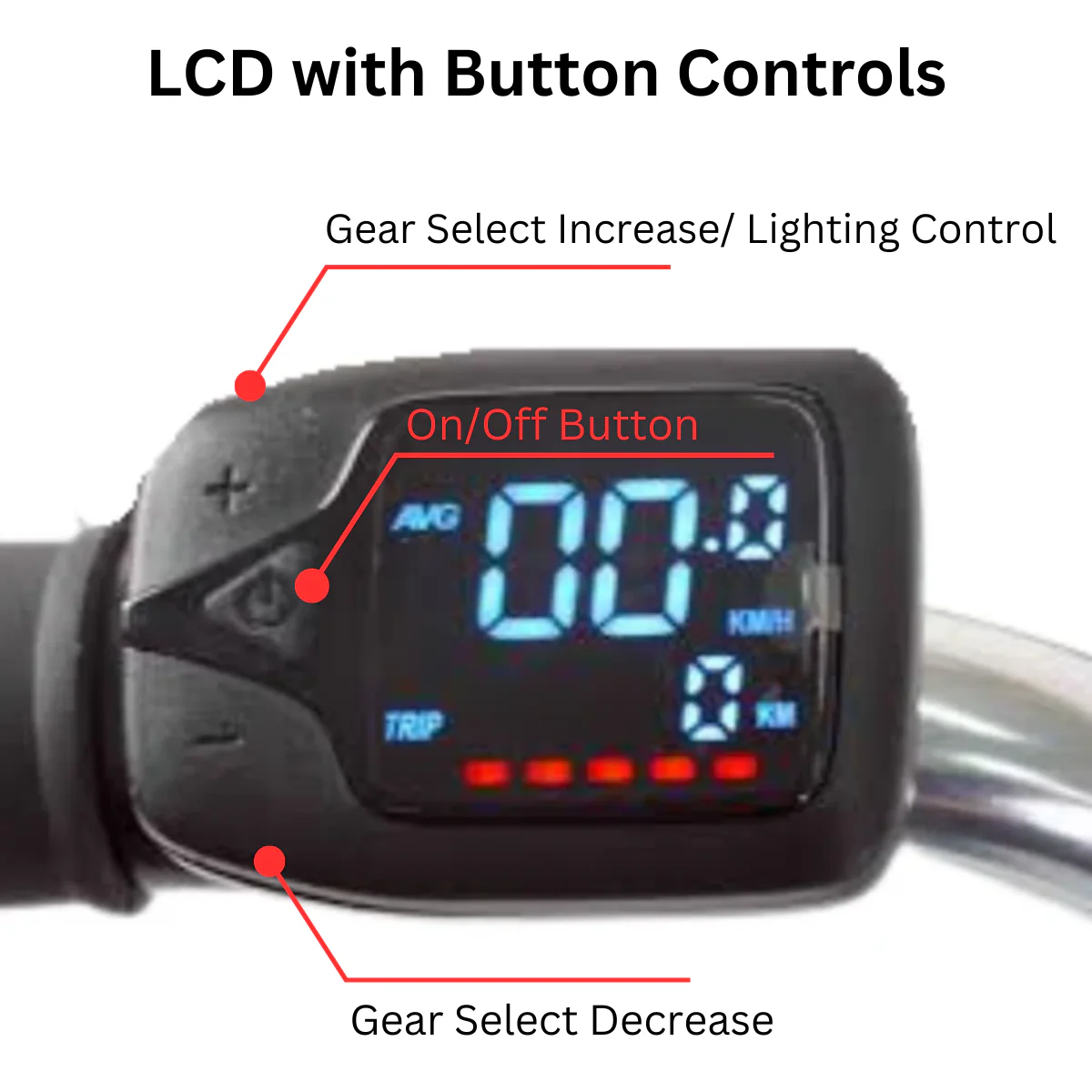

This is how the LCD with button controls work with the ZL or YYK Controller:

Specifications:

Dimension	11 x 6.5 cm (screen size 7.6 x 5.3cm)
Functions	Speedo, Odometer, Battery Indicator, Left and Right Turn Signal (Not used)
Operating Voltage	48V-72V
Speed Range	0-99 kmh
Rated Operating Current	40mA
Max Operating Current	100mA
Max output current to controller	100mA
Operating Temperature	-20 to 70C
Comm Protocol	Analog (3-wire)
Includes	Rubber Spacers, Mounting Bracket; Function Control button; Waterproof wire harness; Thumb Throttle
Excludes	Brakes, controllers, throttle sold separately
