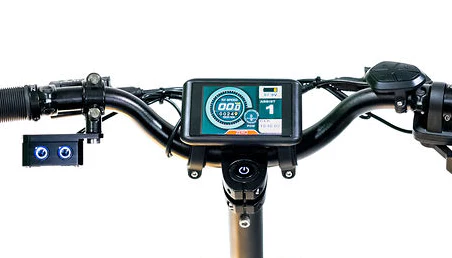

TFT LCD 3.5" Display IPS Screen (for ZERO 10X Limited)

This TFT IPS Display works ONLY with the ZERO 10X Limited and ZERO 10X EVO models.

Do note that this will not fit ANY controller. It is specially customised for the ZERO 10X Limited and EVO controllers here.

[product_description]

Configurable parameters:

1. Speed Limit: 0 to 120kmh (default at 99kmh)
2. Current Setting: 0 to 120A (do not exceed 120A)
3. Assist Levels: 1-5 (default at 5)
4. Poles in Motor: 30 (do not change)
5. Throttle PWM: do not change
6. Assist Poles: 12 (do not change)
7. Start Mode: 1-5 (default at 3)

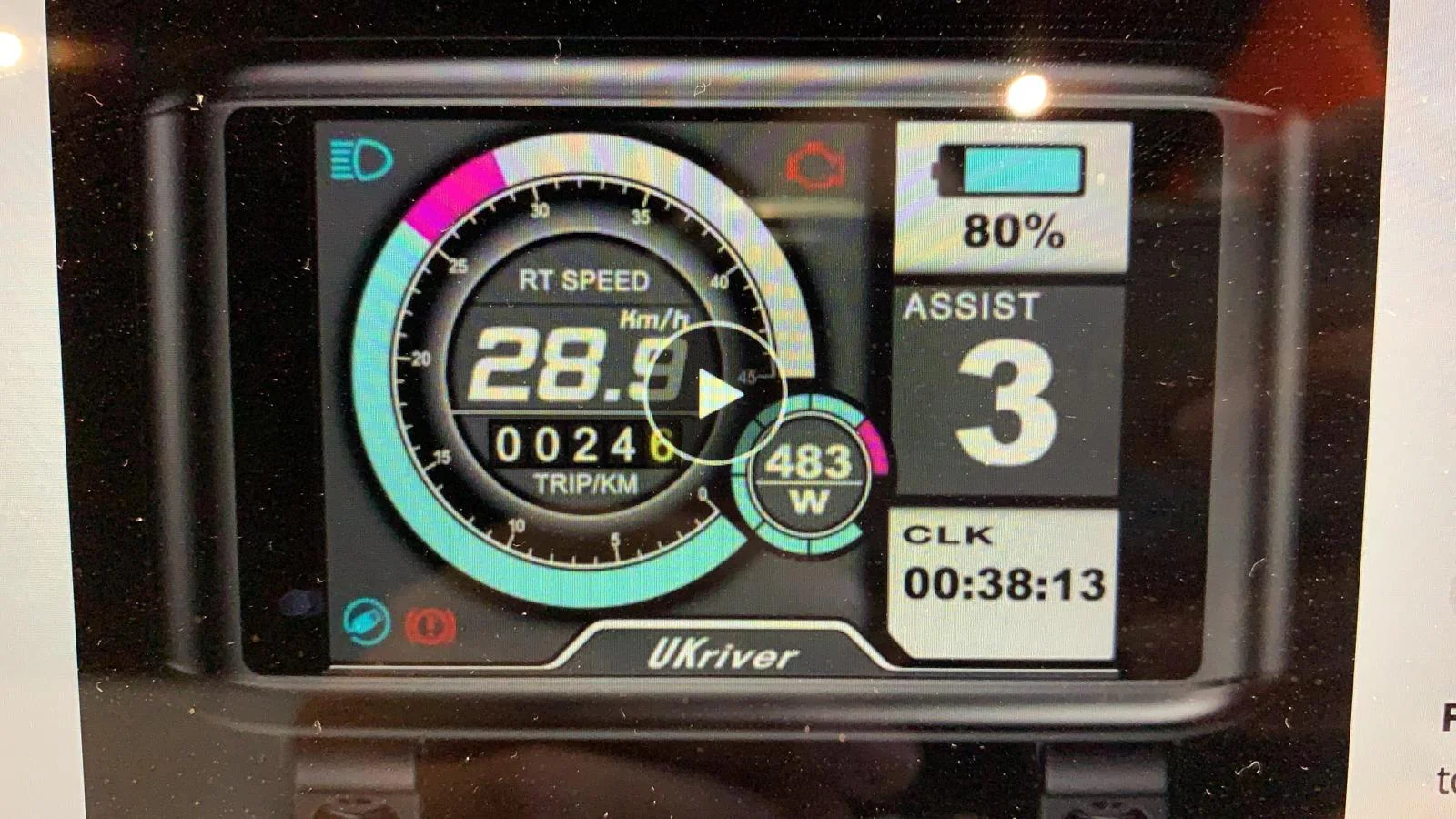

Check out how the TFT Full Color Display works:

Settings Configuration:

Specifications:

Dimension	11 x 6.5 cm (screen size 7.6 x 5.3cm)
Operating Voltage	24-72V
Rated Operating Current	40mA
Max Operating Current	100mA
Max output current to controller	100mA
Operating Temperature	-20 to 70C
USB Charging Port	5V 500mA
Comm Protocol	UART
Includes	Rubber Spacers, Mounting Bracket; Function Control button; Waterproof wire harness; Thumb Throttle
Excludes	Brakes, controllers
User manual	download here
