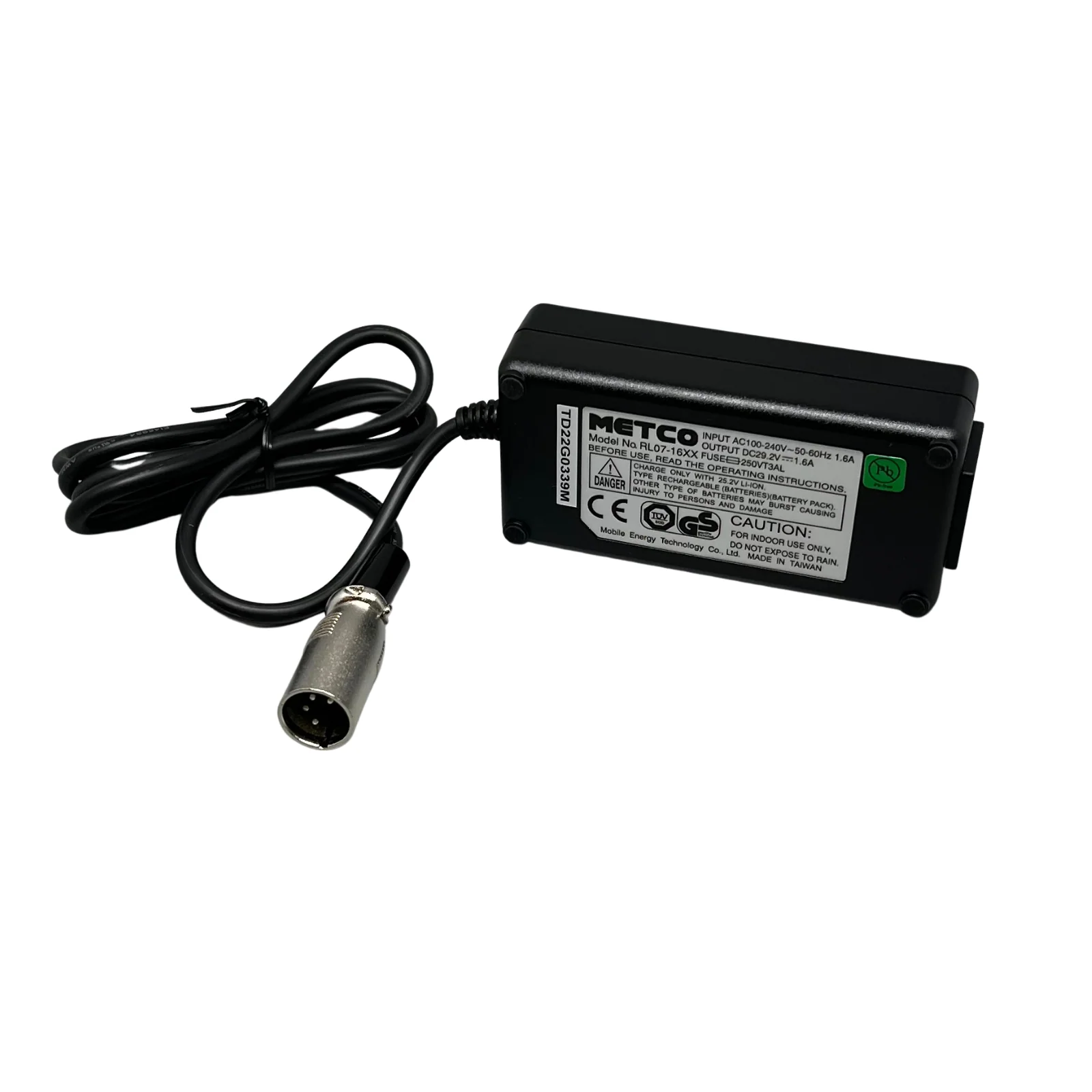

Travelscoot Battery Charger 24V Charger Li-Ion Charger

*For export purposes only. Not available for Singapore use

The Li-ion battery charger is specifically made for charging the Travelscoot battery.  This charger has safety protection features like over-current protection, over-voltage protection and also, high temperature protection. It will cut off charging immediately when the pack temperature is higher than 40C or lower than 0C.

[product_description]

Operation:

The charger has 2 LEDs: one for POWER and one for STATUS. Here is the charger operation:

Indicator	POWER LED	STATUS LED
AC on	Constant RED	OFF
Initiation of Charger	ON	Flash Green 3x
Quick charge	ON	Constant Red
Pre-charge mode	ON	Red Slow Flash
Battery Full	ON	Constant Green
Battery Removed	ON	OFF
Over Temperature or faulty thermistor	ON	Green Fast Flash
Precharge abnormal	ON	Green Fast Flash
Charger output short	ON	Flash Green 2x then Flash Red

Specifications:

Charging Input	100-240V AC 50-60Hz 1.6A

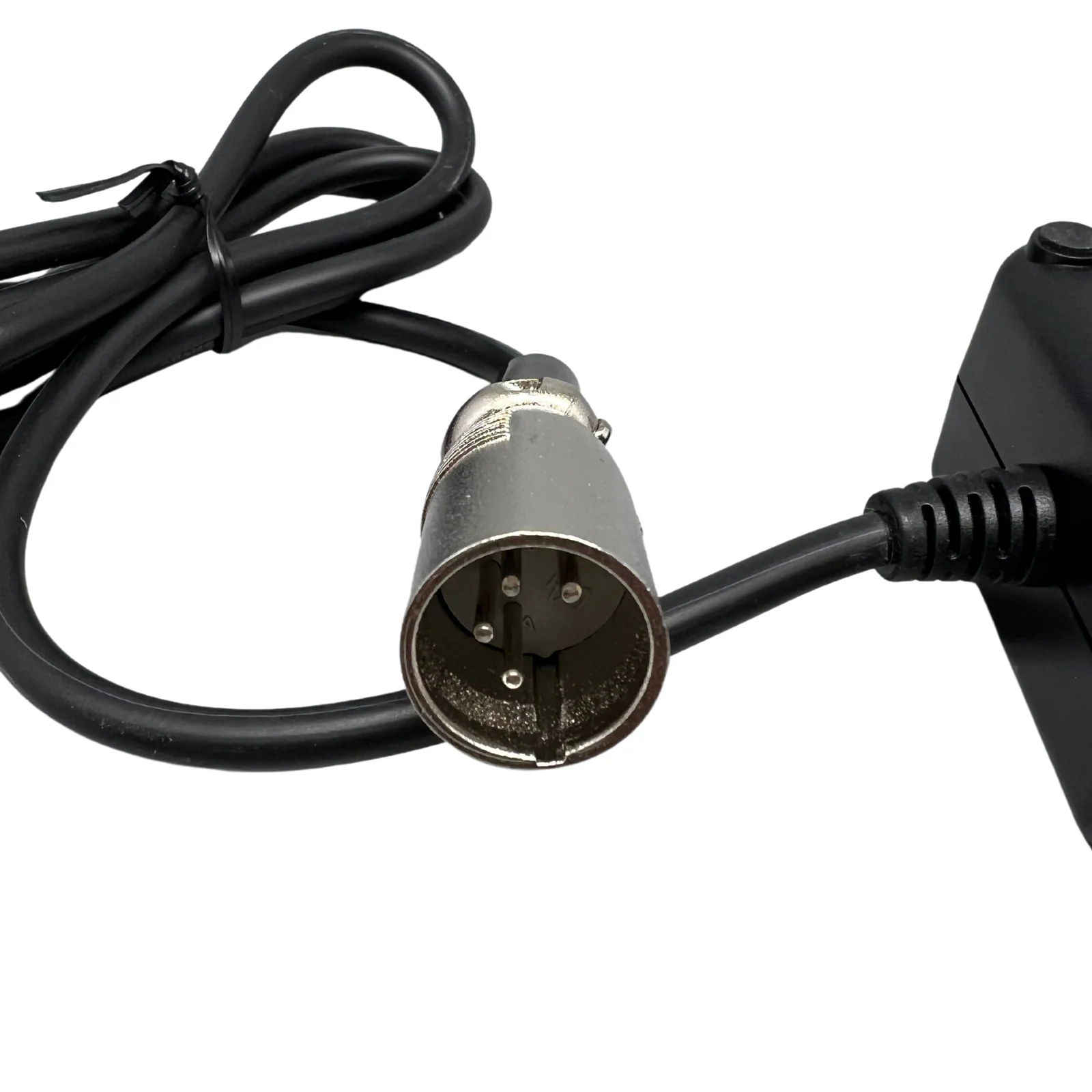

Connector	4 pin XLR
Charging voltage	29.2V 1.6A
Features	Over current protection at 1.6A dc Over voltage protection at 29.4V dc Over Temperature protection at >40C and <0C
