High Current Charging Port

[product_description]

Our selected charging ports are fit for purpose for ebikes or e-scooter external batteries. They are waterproof and low internal resistance.

To remove your old charging port, you can follow this video below:



The Charging Port Package Includes:

1. Charging Port both female and male sides
2. Charging adapter to be used together with your current charger

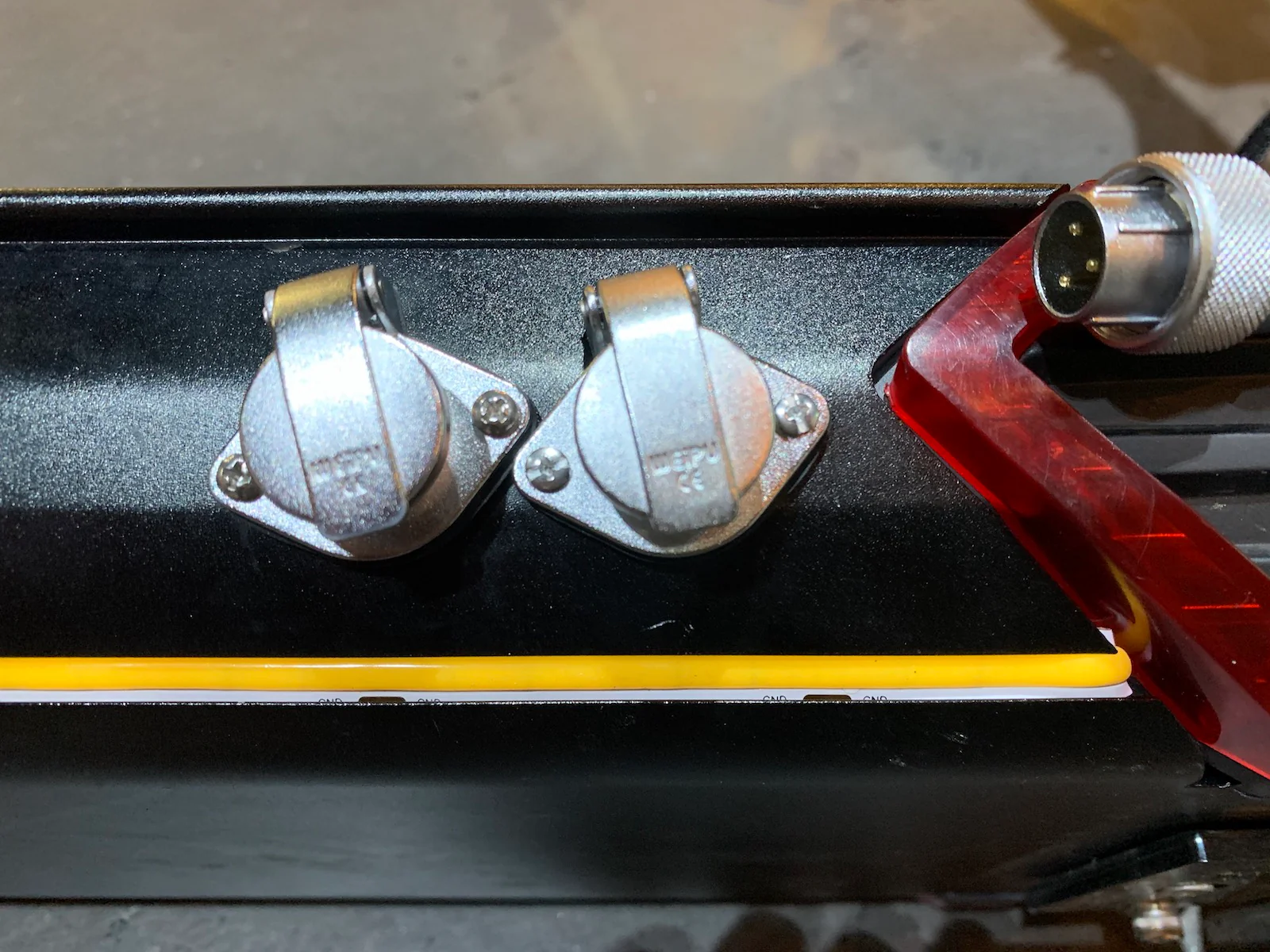

3. Installation is not included. 2 screws need to be screwed into the deck so some installation is required. Do not purchase if you are not comfortable with making these 2 screw holes.

[/product_description]

[more_info]

Specification

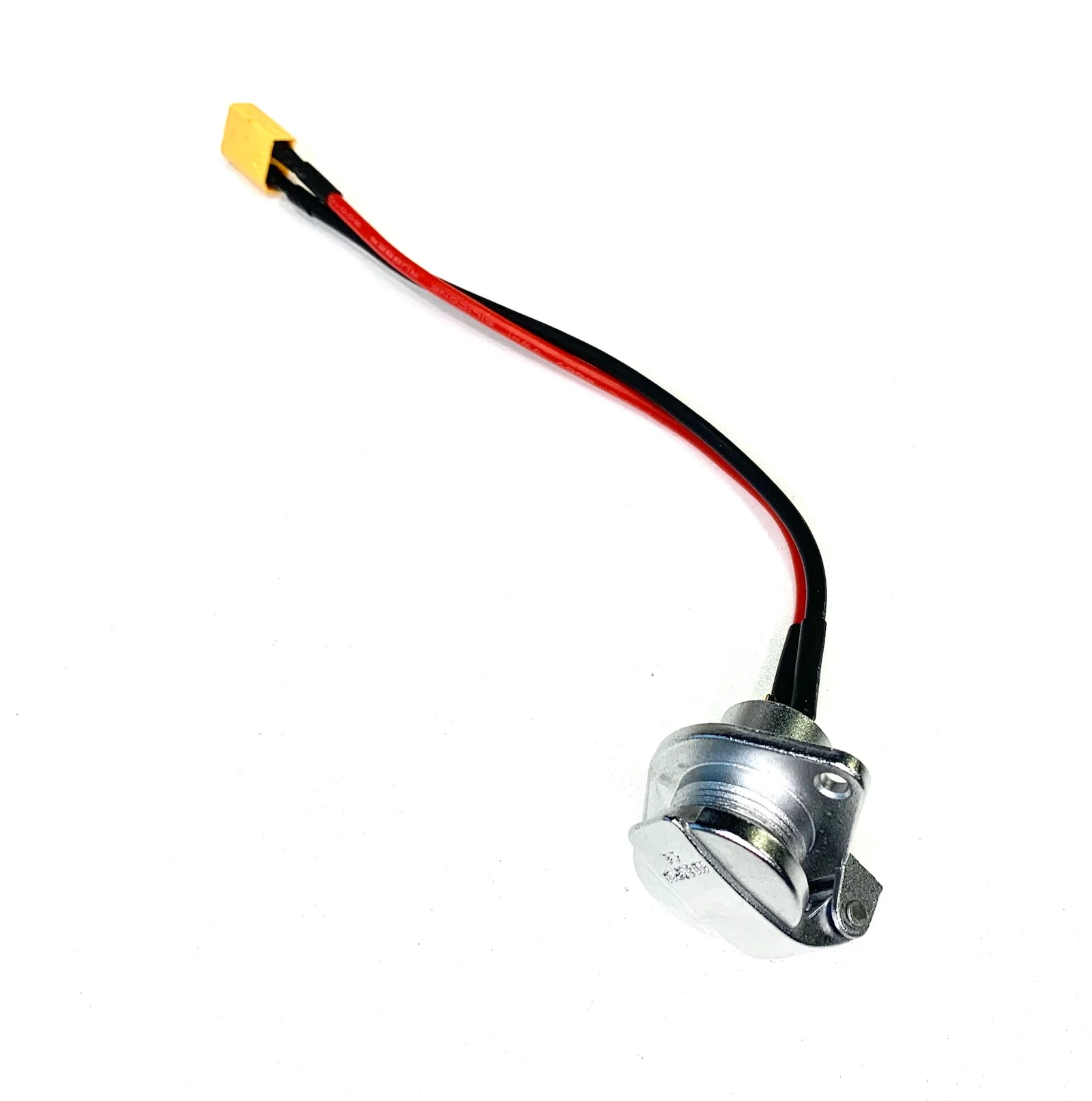

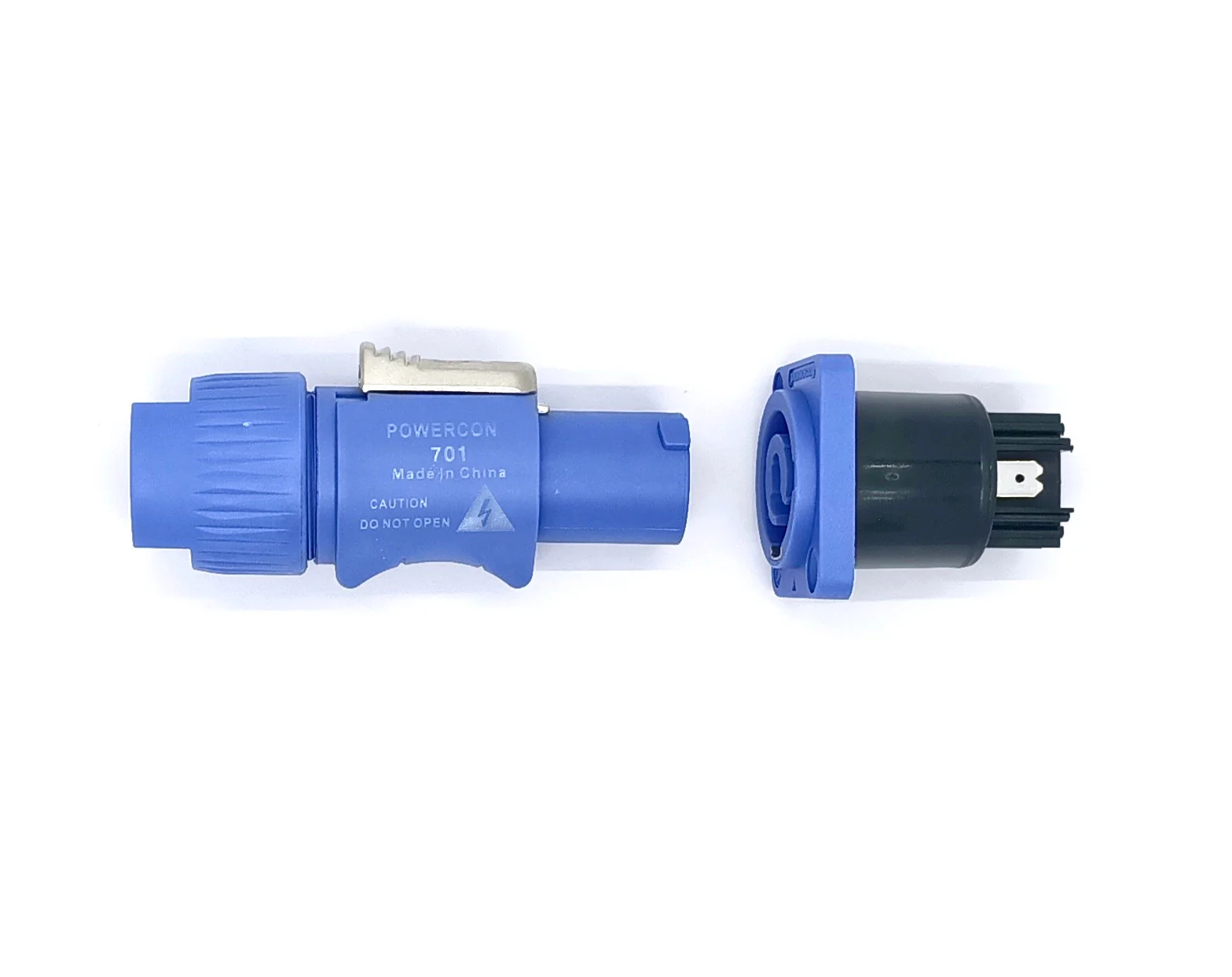

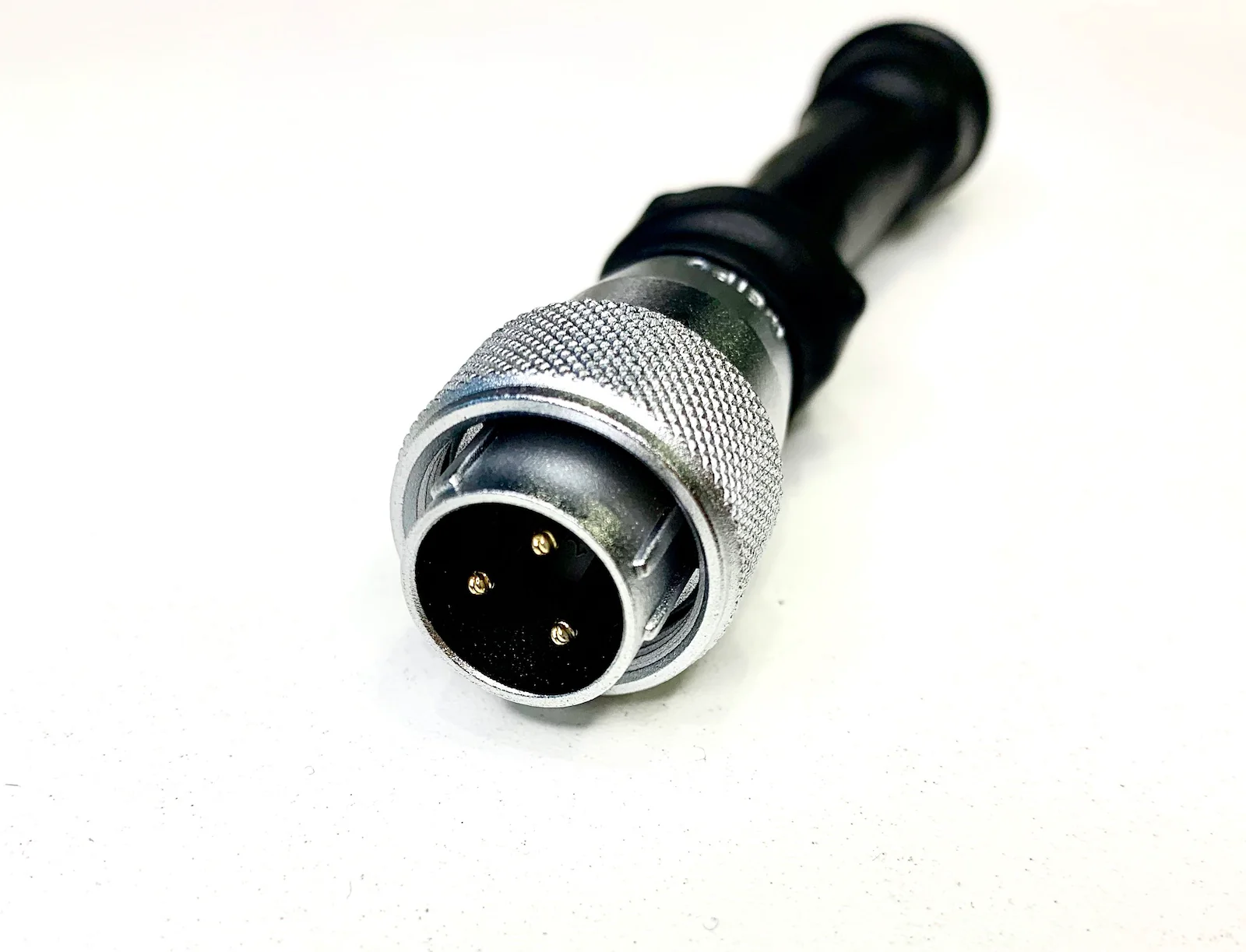

	Powercon (blue)	Aviation 3-pin (silver)
Voltage	80V dc	70V dc
Internal Resistance	<3 milliohms	2 milliohms
Current Rating	20A	10A
Waterproof	Yes	Yes
Dimension	d1: 16mm I1: 13mm L: 30mm b1: 30mm B1: 38mm H: 32.5mm L2: 22mm	d1: 23.5mm I1: 30.5mm L: 30mm b1: 30mm B1: 26mm H: 31mm L2: 37.2mm
