DNM Air Shock Suspension

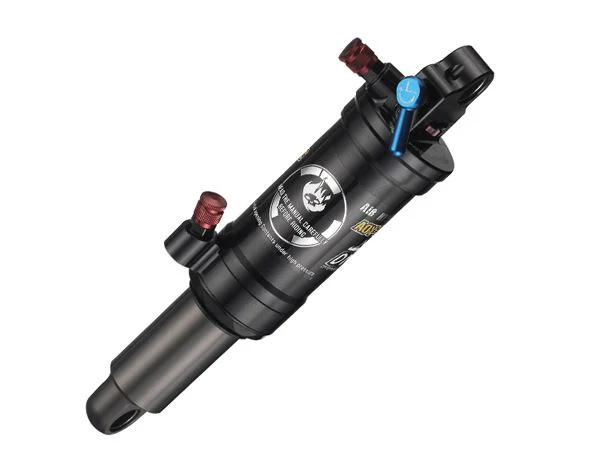

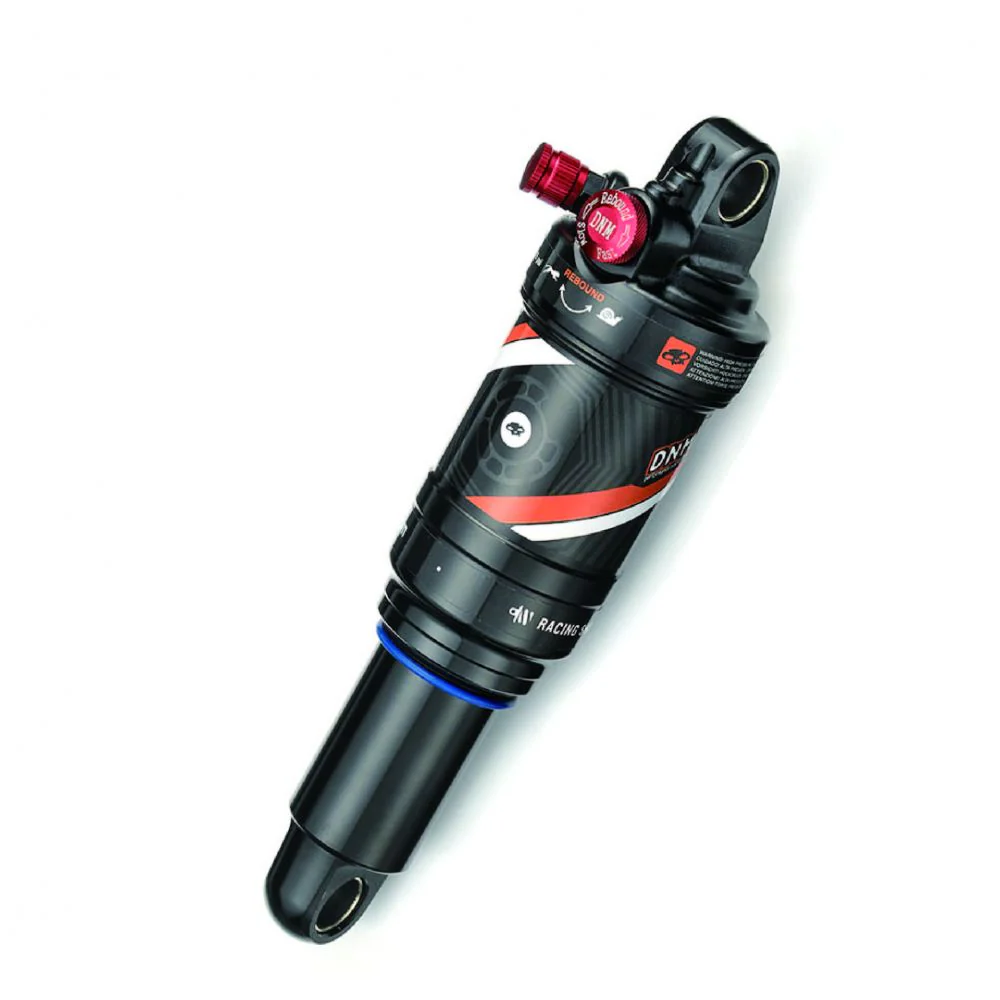

The DNM AOY-36RC XC/MTB/Trail/Cyclocross Bike Rear Shock has been fitted with a lockout and fully adjustable high-pressure system. This makes it ideal for all types of terrain.

[product_description]

Made from 6061-T6 a hard anodized alloy, make it very light whilst still retaining its strength and durability. Available in two base length eye to eye x travel options either 165mm x 35mm (6.50" x 1.38"), 190mm x 45mm (7.83" x 1.78"), 200mm x 51mm (7.87 x 2.01").

Watch the difference between a stock spring coil suspension vs an air shock absorber suspension:

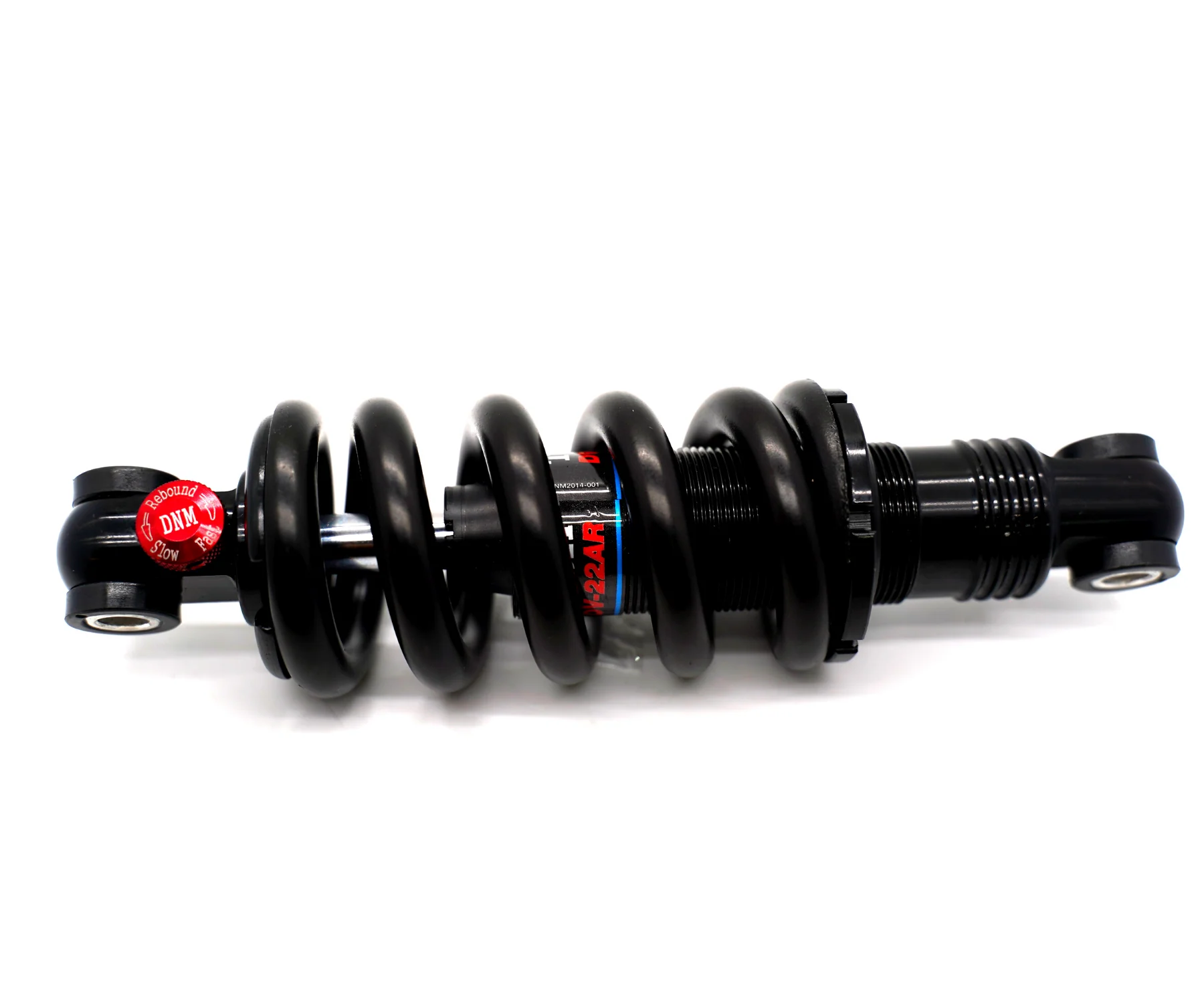

Here is a side by side comparison of Spring suspension vs hydraulic shock suspension. Both are DNM shocks but see the difference between a spring suspension and a hydraulic shock below.



The air shock behaves similarly to hydraulic shocks with more damping but slower rebound.

Hydraulic/air shocks have lower resonance peak over bumps giving the rider less body stress. When resonance is high and stays high like on the spring suspension, the body absorbs that and over a period of time, the body will feel the stress.

In the video above, you observe the spring suspension rebounds very abruptly, this creates high resonance and stress on the rider.

User Manual: https://www.dnmshock.com/upload_files/products/18/ao-38rc.pdf

[/product_description]

[more_info]

 REAR SHOCK Measurement as follows.

• Eyelet diameter (B1&B2): 6 mm, 8 mm
• Eyelet Width (C1&C2): 22-50mm

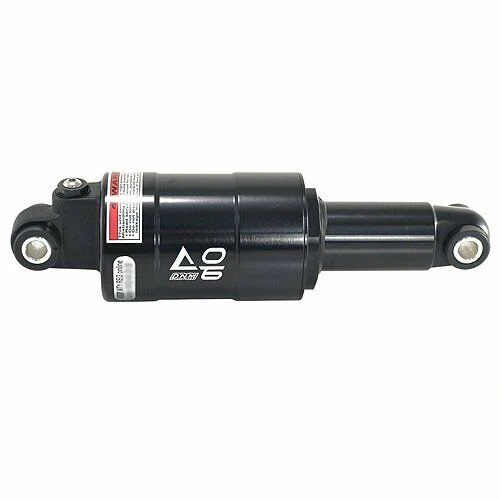

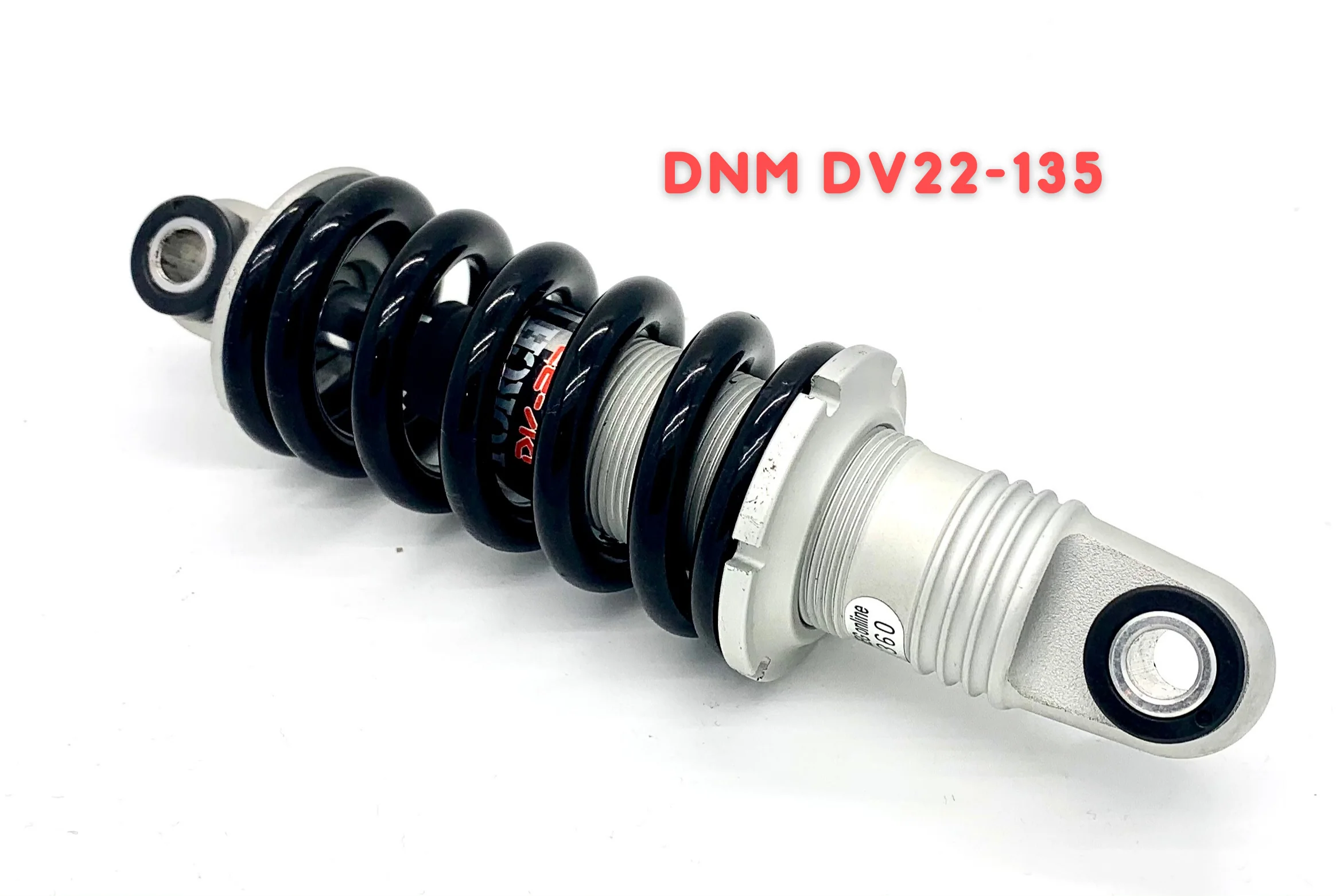

Model	DNM AOY-36RC	DNM AO-42AR	DNM DV 22
Weight	300g	280g	200g
Length	165mm x 35mm (6.50" x 1.38")	165mm x 38 mm (6.50" x 1.50")	135mm (eye to eye)
Eyelet diameter	8mm	8mm	10mm
Eyelet width	22mm~40mm	22mm~40mm	22mm~40mm
Damping	4-system	-	Oil Damping with floating piston
Adjustments	Rebound / Lock out / Adjust High Pressure	Rebound/Air Pressure Adjustable	N/A
Damper shaft	Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft;  Dark hard-anodized AL-6061 shock body	Dark hard chromed shock ∅10 mm ( 0.39 inch ) shaft;  Dark hard-anodized AL-6061 shock body	T6 forged AL6061 spring stopper, top eyelet and body.
Riding style	XC/Trail	XC/Trail	Not for XC/Trail, Urban bumps

[/more_info]
