48V 52V 60V 72V DC DC Converter

Universal converter that can take in anywhere from 36V to 72V (including 52V and 60V) as the input voltage and down convert to a 12V output.

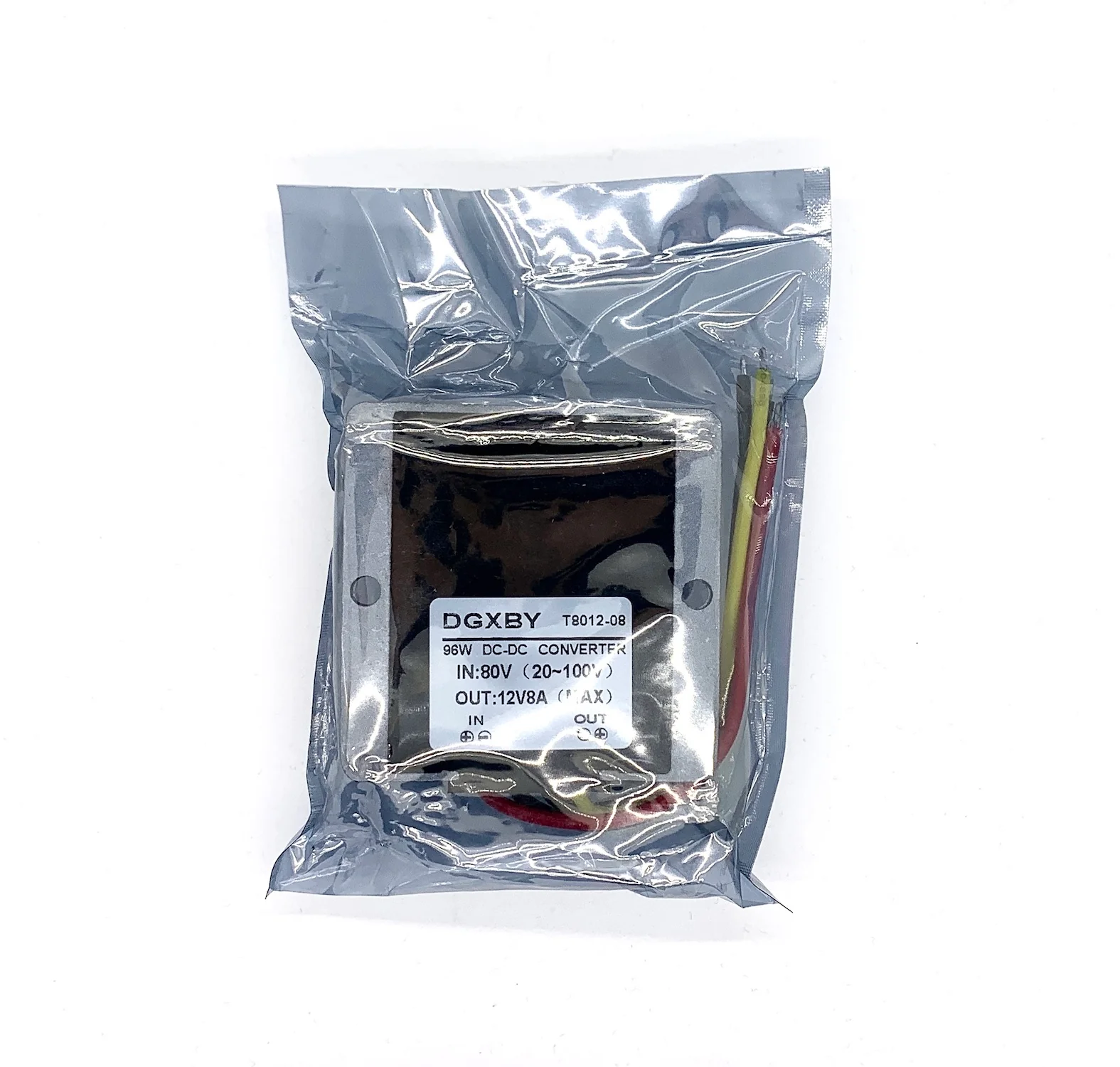

For actual 72V battery systems, the max voltage is 84V so you will need to get the 85V DC converter which is larger in size and comes with a heat sink.

[product_description]

Max output current is 3A or 4A which is sufficient to power standard headlamps and horns. Overloading the DC converter with high powered lighting will result in melting of the converter which could result in battery damage.

Specifications:

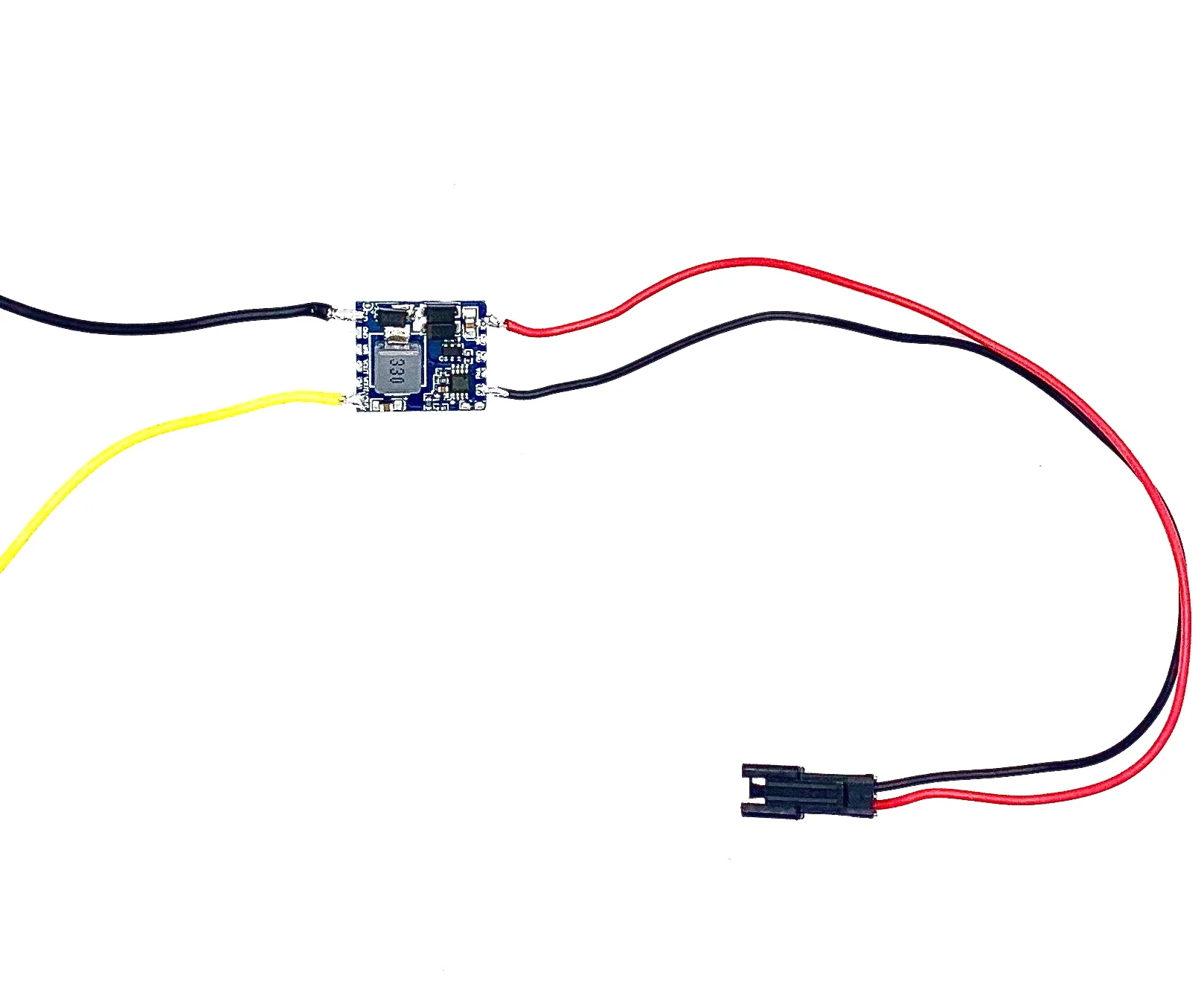

◆  Model: TYPS7530 series

◆  Nature: Non-isolated buck regulator module

◆  Efficiency up to 95%

◆  Input voltage: 5.5-70V

◆  Adjustable output voltage: 1.2V-60V

◆  Output current: 0-5A

◆  Dropout voltage: minimum 0.4V

◆  Low ripple and low noise

◆  Output accuracy: typical ±2%

◆  Size: 19X20X6MM without shell; 19X20X14MM with shell, the output current with shell is generally about 0.5 times higher than that without shell

◆  Process: lead-free half-hole, suitable for industrial SMT

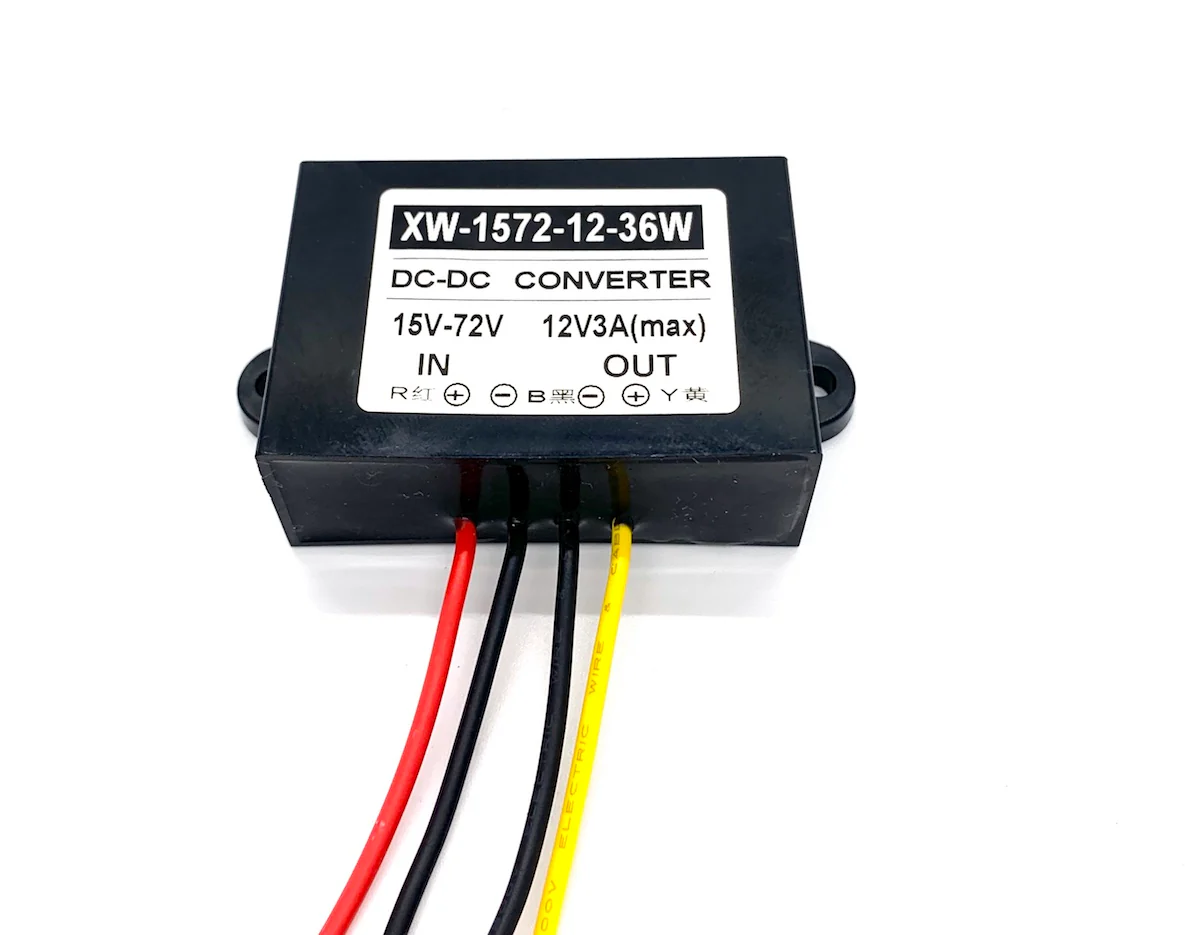

Dimension of 3A: 46 x 32 x 18mm

Dimension of 4A: 58 x 40.5 x 22mm
